Orifice plate with flat sealing face and corner taps

  • Separate type, with carrier ring and optional shut-off valve
  • Size: DN50…600; up to PN100
  • Temperature: up to +400°C / +752°F
  • Material: 1.4404 / 316L

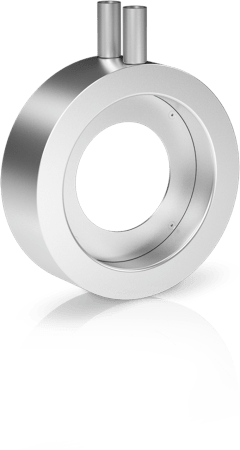

The OPTIBAR OP 3100 is an integral orifice plate (OP) with carrier ring and corner taps for flow measurement of aggressive and non-aggressive gases, steam and liquids. The carrier ring of the orifice plate is made from a solid one piece. The orifice plate is one piece with the carrier ring for smaller diameters and screwed for bigger diameters. The separate type OP can be installed between standard pipe flanges on horizontal or vertical pipes.

Product highlights

  • Cost-effective DP flow element according to EN ISO 5167
  • Sizing: EN ISO 5167, ASME MFC-3M, AGA 3, ASME PTC 19.5 2004, GOST 8.586, RD 50-411-83
  • Easy to clean
  • Lowest uncertainty of discharge coefficient
  • High Reynolds number permissible according to norm

Typical applications

  • For differential pressure flow measurement with OPTIBAR DP 7060 transmitter
  • For aggressive and non-aggressive gases, steam and liquids
  • Applications with media that tend to become resinous and can accumulate
