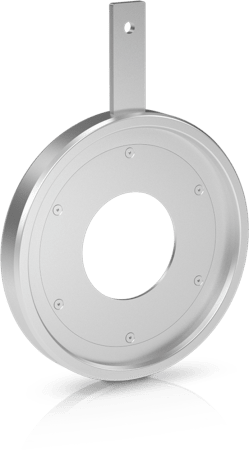

Orifice plate with RTJ sealing face

  • For mounting between measuring flanges (ASME 16.36, 16.5)
  • Size: 1…24"; up to ASME Cl 2500
  • Temperature: up to +450°C / +842°F
  • Material: 1.4404 / 316L



The OPTIBAR OP 1110 is an orifice plate (OP) with ring-type joint (RTJ) design. The DP flow element is particularly suitable for high pressure applications with clean liquids, gases and low velocity steam flow. The RTJ orifice plate features an octagonal integral gasket for mounting between ring-type joint flanges.

The cross-section profile of the OPTIBAR OP 1110 is designed to fit inside the recess of the RTJ flanges and is used as flange sealing. The octagonal RTJ gaskets are made of a softer steel than the main material. In this way, the orifice is sealed reliably and stays clean when tightened with bolts. The OPTIBAR OP 1110 is available with a sharp edge on the upstream side and 45° edge on the downstream side or with bi-directional cross section profile.

Product highlights

  • Cost-effective DP flow element according to EN ISO 5167
  • Sizing: EN ISO 5167, ASME MFC-3M, AGA 3, ASME PTC 19.5 2004, GOST 8.586, RD 50-411-83
  • Easy handling and simple installation
  • Lowest uncertainty of discharge coefficient
  • High Reynolds number permissible according to norm
  • With optional vent drain holes

Typical applications

  • For differential pressure flow measurement with OPTIBAR DP 7060 transmitter
  • Applications with clean liquids, gases and steam at higher pressure conditions
